Carbon Steel Long Radius Elbow Seamless And Welded 90 /45/180 Degree Canghai Nuclear

Hebei Canghai Nuclear Equipment Technology Co., Ltd.This  Long Radius Elbow is crafted from high-quality carbon steel, ensuring a robust and long-lasting performance. Its seamless construction provides excellent resistance to corrosion and wear, guaranteeing a reliable connection for your plumbing needs.Standrad:ANSI ,JIS ,DIN, ASME,etc.Wall thickness:SCH5-SCH80.

    Product Description

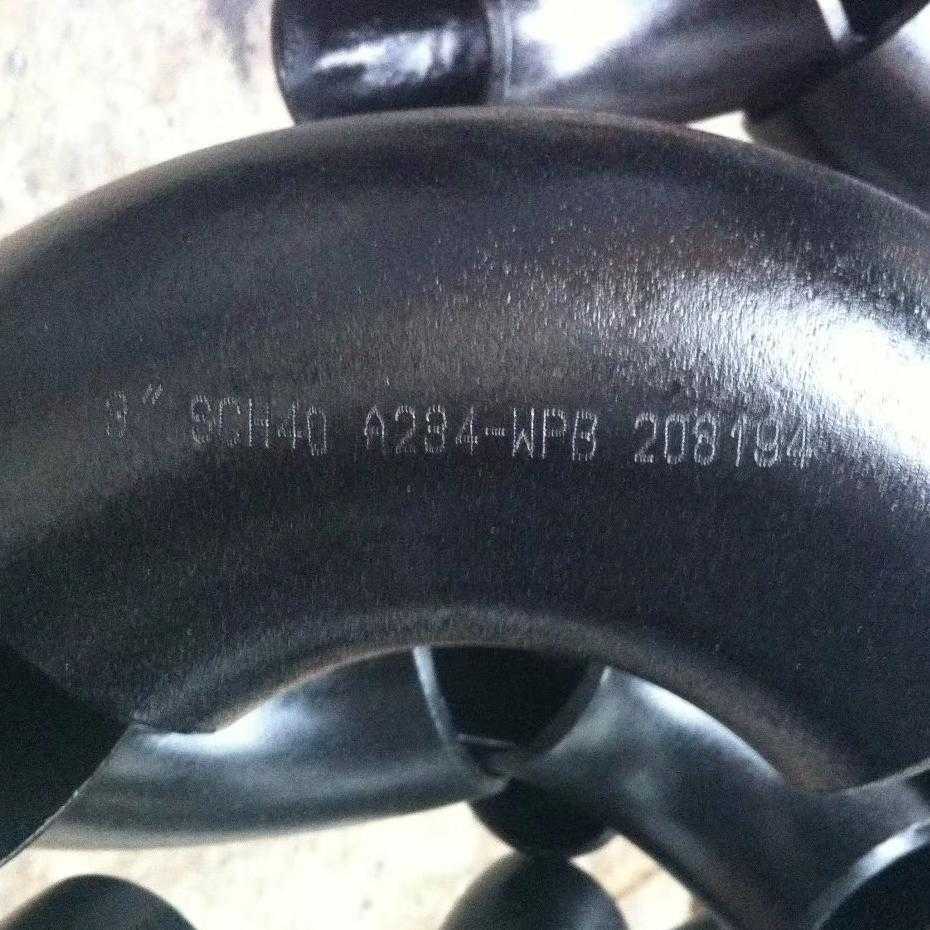

    ANSI B16.9 A234 WPB Elbow 90 Degree L/R Black Painted pipe fittings,Butt-Welded Seamless Carbon Steel Pipe Fittings  Canghai Nuclear Brand

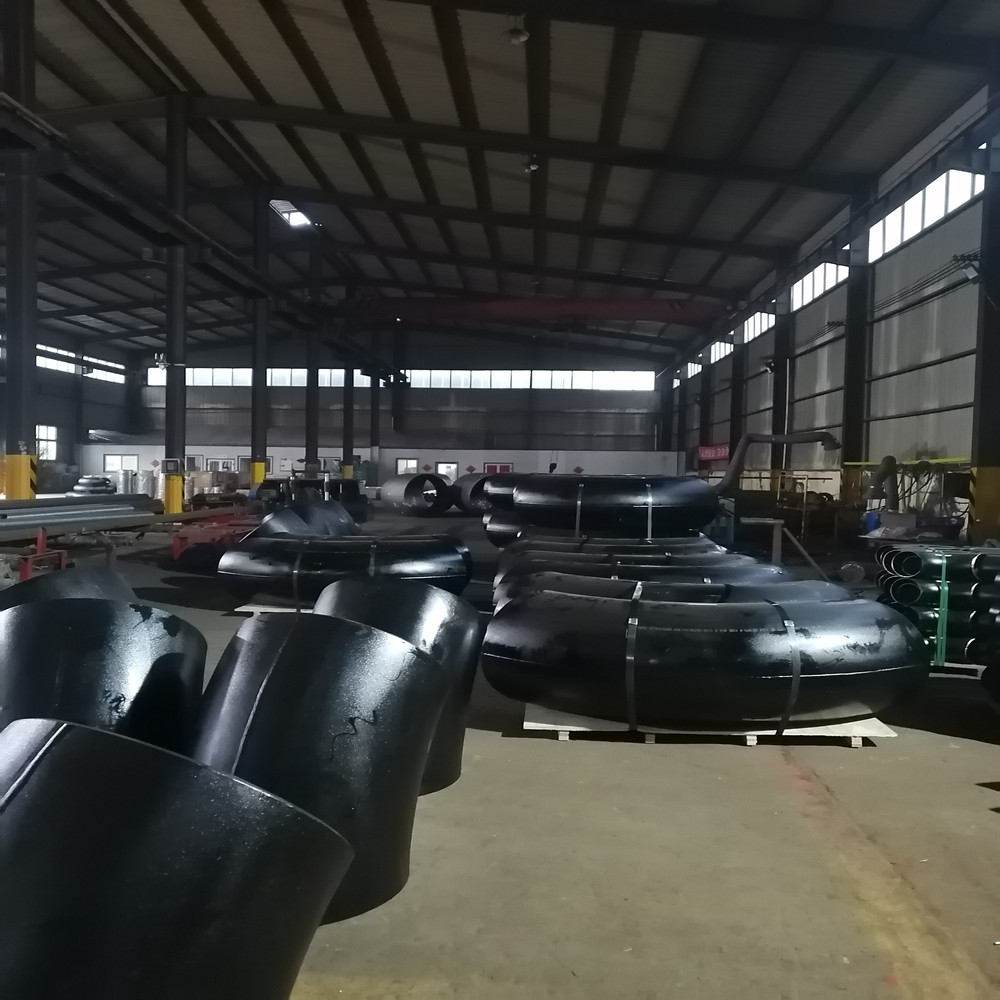

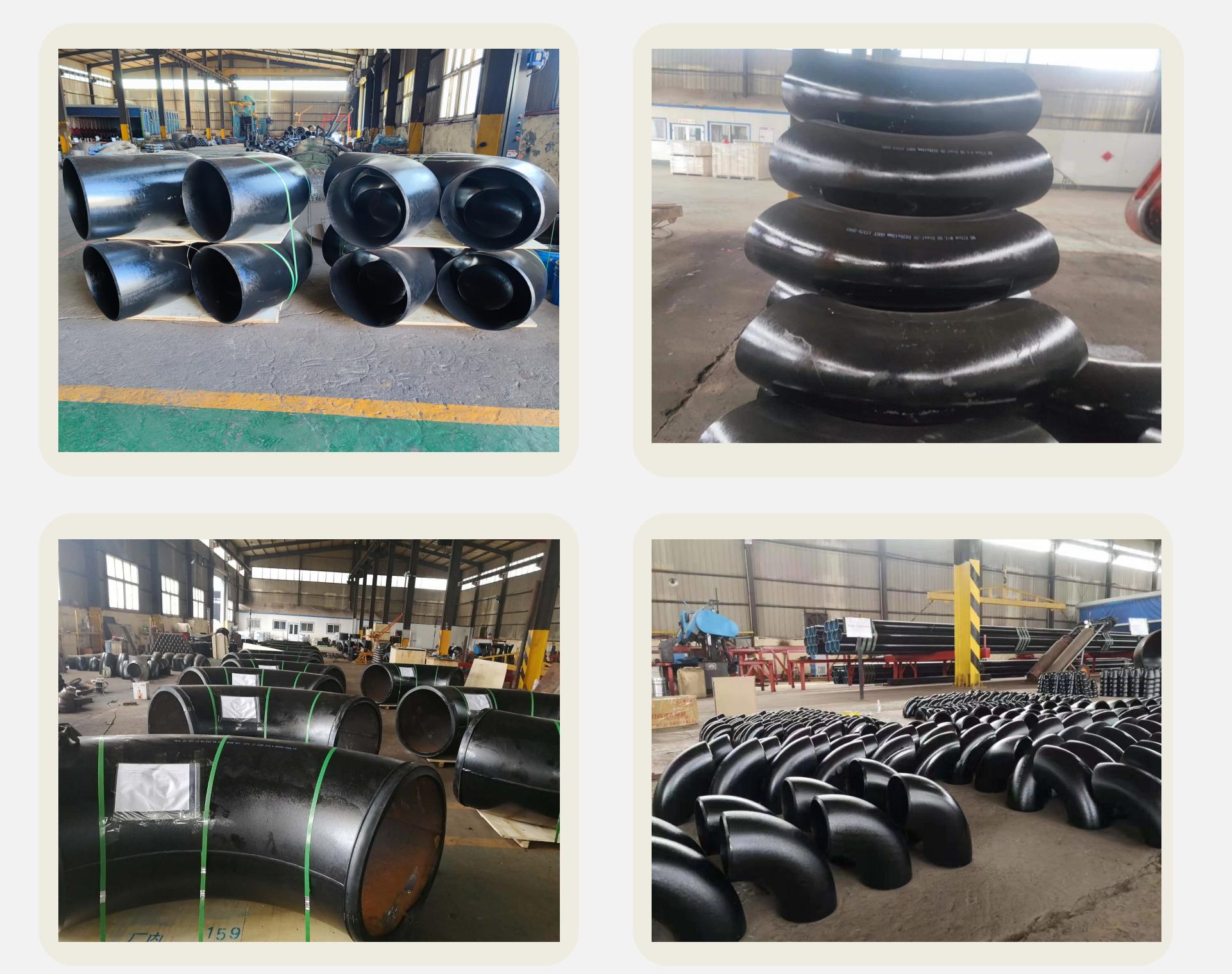

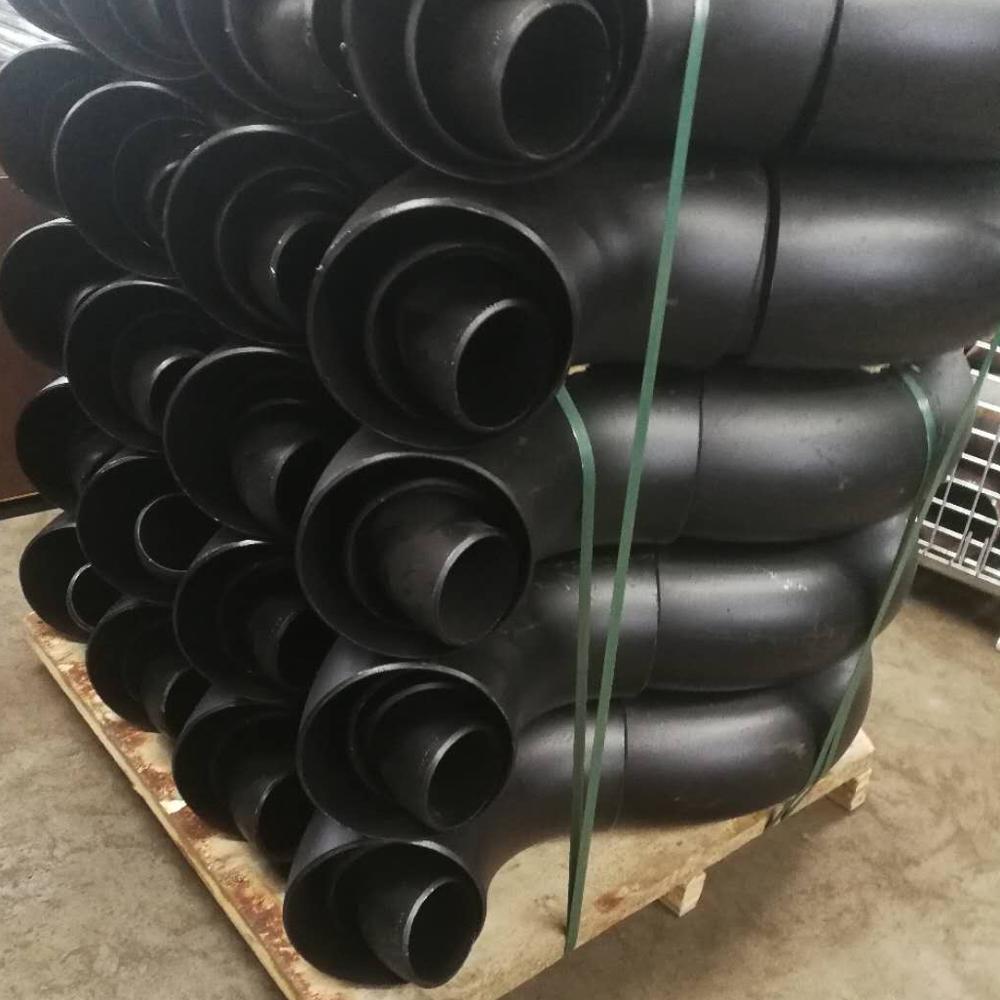

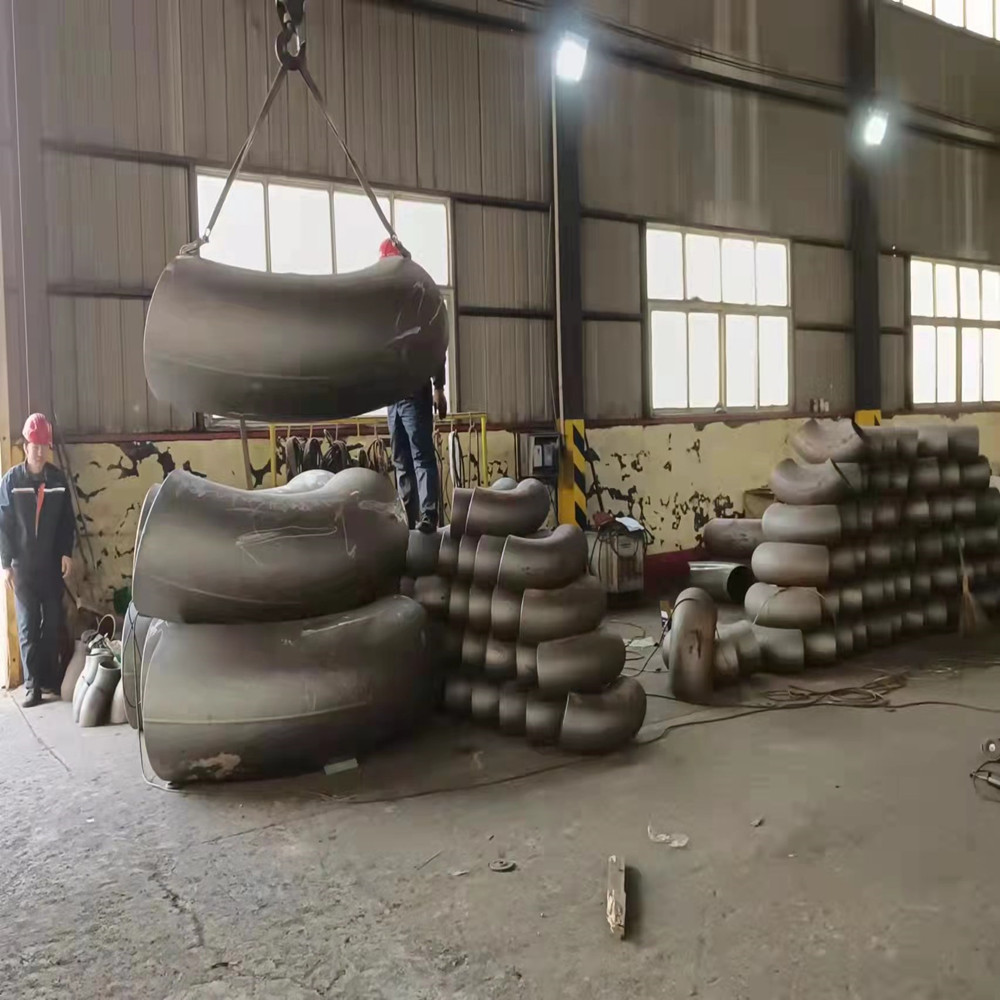

    Product Display

    Product Parameter

    Product Name Butt Welded Elbow
    Brand Canghai Nuclear
    Angle 30° 45° 60° 90°
    Material carbon steel: A234WPB,A420 WPL6,S235JR,P235GH,P245GH,P265GHP280GH
    ,P295GH,P275NL1,,P355NLI ,P355N1.2, P355NH, P355QH , P355N.S(37.2 . St37, E24.St35.8.Stee120.20#
    Standard ANSI ,JIS ,DIN, ASME,etc.
    Wall thickness SCH5-SCH80
    Production Process Seamless or Welded
    End BE /PE
    Keyword of pipe fittings Butt Welded
    Connection Welding
    Usage Drain





    Nominal sizeNominal size
    Outside diameter at bevel
    D/mm
    center to end
    DN
    NPS
    I
    90° Elbow
    A/mm
    45° Elbow
    B/mm
    15
    1/2
    21.3
    18
    38
    16
    20
    3/4
    26.9
    25
    38
    19
    25
    1
    33.7
    32
    38
    22
    32
    1-1/4
    42.4
    38
    48
    25
    40
    1-1/2
    48.3
    45
    57
    29
    50
    2
    60.3
    57
    76
    35
    65
    2-1/2
    73.0
    76
    95
    44
    80
    3
    88.9
    89
    114
    51
    90
    3-1/2
    101.6
    ——
    133
    57
    100
    4
    114.3
    108
    152
    64
    125
    5
    141.3
    133
    190
    79
    150
    6
    168.3
    159
    229
    95
    200
    8
    219.1
    219
    305
    127
    250
    10
    273.0
    273
    381
    159
    300
    12
    323.9
    325
    457
    190
    350
    14
    355.6
    377
    533
    222
    400
    16
    406.4
    426
    610
    254
    450
    18
    457.0
    480
    686
    286
    500
    20
    508.0
    530
    762
    318
    550
    22
    559.0
    ——
    838
    343
    600
    24
    610.0
    630
    914
    381
    650
    26
    660.0
    ——
    991
    406
    700
    28
    711.0
    720
    1067
    438
    750
    30
    762.0
    ——
    1143
    470
    800
    32
    813.0
    820
    1219
    502
    850
    34
    864.0
    ——
    1295
    533
    900
    36
    914.0
    ——
    1372
    565
    950
    38
    965.0
    ——
    1448
    600
    1000
    40
    1016.0
    ——
    1524
    632
    1050
    42
    1067.0
    ——
    1600
    660
    1100
    44
    1118.0
    ——
    1676
    695
    1150
    46
    1168.0
    ——
    1753
    727
    1200
    48
    1219.0
    ——
    1829
    759
    1300
    52
    1321.0
    ——
    1981
    821
    1400
    56
    1422.0
    ——
    2134
    884
    1500
    60
    1524.0
    ——
    2286
    947

    Types of Elbows

    Exhibitions

    Hot-Sale Products

    • Cap

      Cap

    • Flange

      Flange

    • Reducer

      Reducer

    • Tee

      Tee

    • Bend

      Bend

    • Pipe Spool

      Pipe Spool

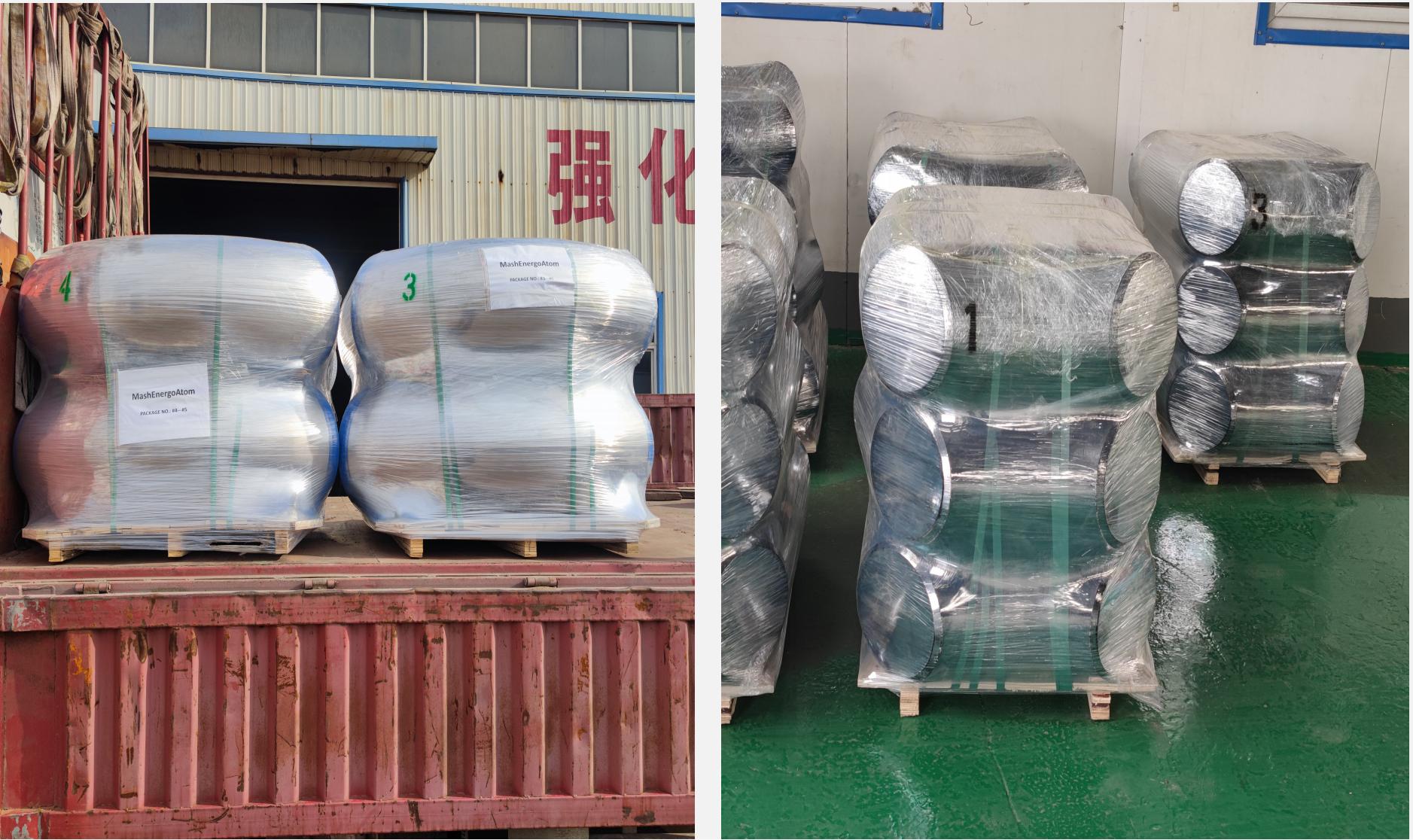

    Packing & Shipping

    • Packing

      Packing

    • Shipping

      Shipping

    FAQ

    1. Are you a factory or trading company?
    A: We are a factory.

    2. How can I get a quotation from you ?
    A: You can leave us message, and we will reply every message in time. And you can also find our contact information on contact page.

    3.Can I get samples before order ?
    A: Yes, of course. we can produce by your samples or technical drawings.

    4.What is your payment terms?
    A: Our usual payment term is 30% deposite before production, 70% balance before shipment. L/C is also acceptatble.EXW,FOB,CFR,CIF.

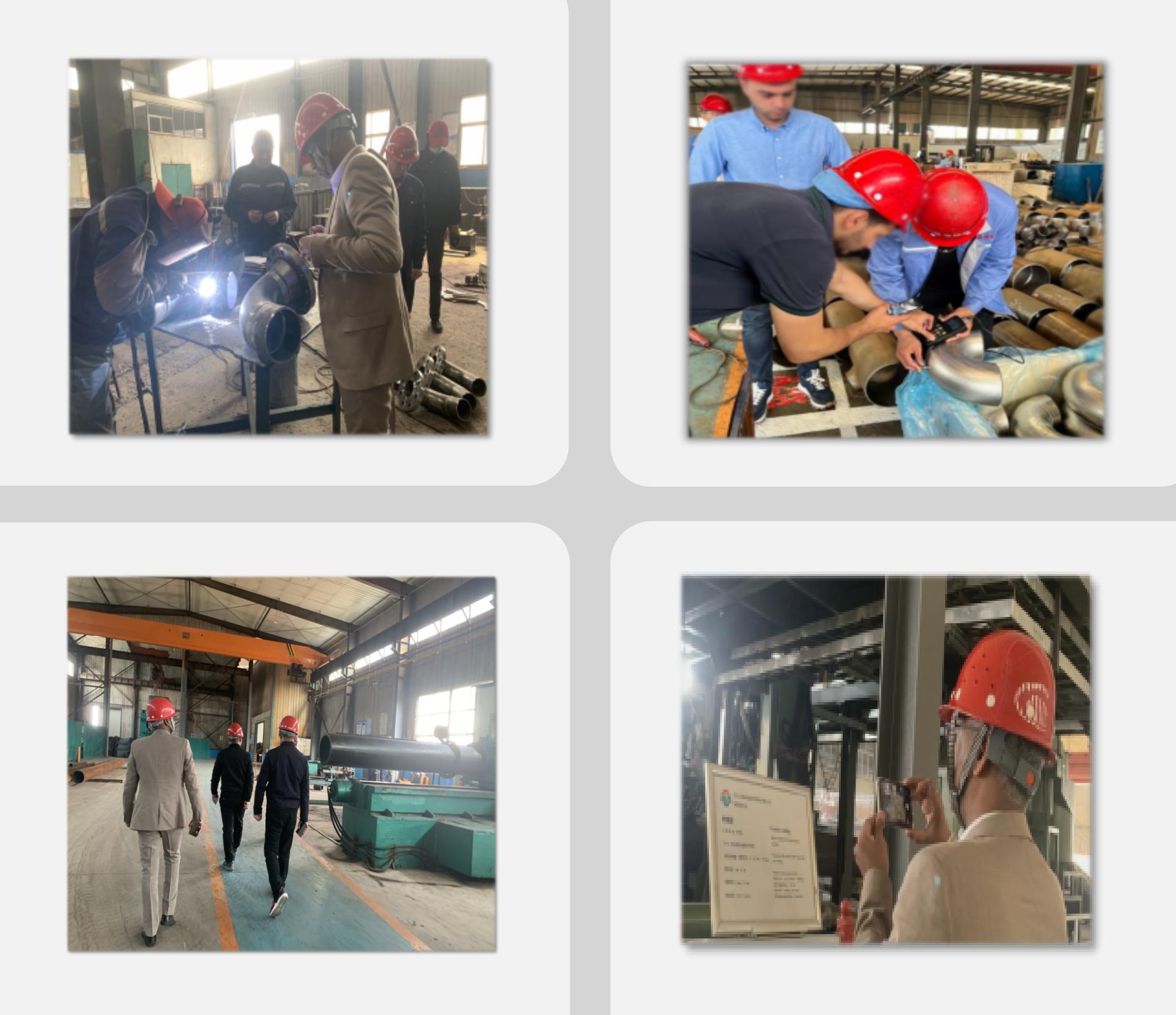

    5.How does your factory do regarding quality control?
    A: Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified. And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished, we will make the last test to pick up the unqualified products

    6.What is your MOQ?
    A: As long as hold one container ,we can accpet the order.
